R42,950.00 Inc VAT

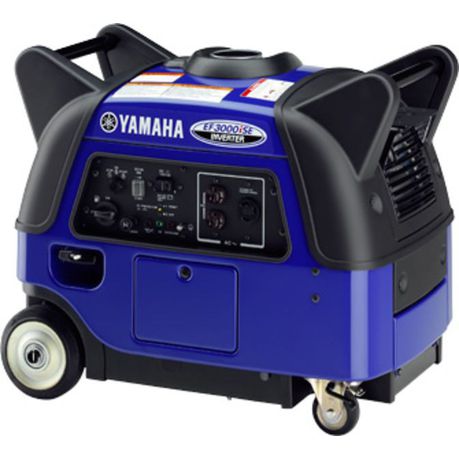

Despite its sizeable power, the EF3000iSE is whisper-quiet, producing noise levels ranging from 54.5 to a maximum of 61 dB – and because it’s mounted on four wheels, moving it around couldn’t be easier. The Smart Throttle / Economy Control feature automatically adjusts engine speed to match the load, for greater fuel efficiency and reduced engine wear.
| Generator | |
|---|---|
| Type | Inverter type |
| Rated voltage (V) | 230 |
| Frequency (Hz) | 60 |
| Rated output (kVA) | 2.8 |
| Max output (kVA) | 3.0 |
| DC output | 12V/12A |
| Engine | |
| Type | MZ175:4-stroke OHV pressure air cooled |
| Starting system | Recoil *1/Electric *2 |
| General | |
| L*W*H (mm) | 680*445*555 |
| Dry Weight (kg) | 67 |
| Fuel tank capacity(full)(l) | 13 |
| Operating Hours (Hr/ 1/4 load) | 20.5 (Economy control system : ON) |
| Operating Hours (Hr/ rated load) | 8.0 (Economy control system : ON) |
| Noise Level (db A)(7m) | 54.5(1/4 load)-61.0(rated load) (Economy control system : ON) |
| Features | |
| Voltage regulator | Inverter |
| Circuit breaker system | Computer controlled |
| Fuel level gauge | ◯ |
| Oil level warning system | ◯ |
| Pilot lamp | ◯ |
| Economy control system | ◯ |
| Voltage fluctuation | |
| Instantaneous | Less than 25% |
| Setting | Less than 1% |
| Setting time | Within 2 secs. |
| Frequency stability | Less than ± 0.1Hz |
| Waveform distortion | Less than 2.5% |
| Acces. | |
| Transportation kit | Standard |
| DC charging leads | ◯ |
| Receptacle | |
 |
|
Please read your owner's manual and all labels before operation.
*1 Recoil hand start
*2 Electric start
Inverter
Economy control
Circuit breaker
4-stroke OHV engine
Oil warning system
Auto decompressor
DC output capability
Fuel gauge
Electric starter
Carrying Handle
Soundproof typeAn Economy Control function has been adopted which chooses the minimum engine rpm necessary for the actual electrical load. What’s more, the combined effect of a compact, lightweight new-design muffler and optimum distribution of sound-absorbing material produce exceptionally quiet running.
The combination of the compact engine, a compact, lightweight inverter unit, a compact alternator with multipolar magneto and outstanding electrical output-per- weight ratio and plastic-material covers, etc., help achieve a low overall weight of just 67 kg. That is light enough to be carried by two people.
Also, for greater ease in moving, the generator is fitted with four wheels.
The highly fuel-efficient 4-stroke, OHV, single cam 175cc engine, the large-capacity fuel tank and the "Economy Control" mode that enables low-rpm running, all combine to achieve a continuous-running time of 20.5 hours (at 1/4 capacity load).
An inverter is adopted to rectify the electrical current.
This provides Pulse Width Modulation (PWM) control in order to produce high-quality electricity supply. That means you can use this generator with confidence as a power source for appliances with built-in computer functions or microcomputer-controlled power tools.
Unbeatable ease of use is guaranteed by the single control panel that brings together all the controls on one surface, including the AC and DC outlets, the output indicator, the output malfunction lamp, the stop switch, the fuel cock and the recoil starter.
The new exterior design adopted for this model has a refined look that truly epitomizes what an IT era generators should be. Using many flowing curves and surfaces, it gives the impression of a power source that can move of its own volition.
The engine adopted on this model is the Yamaha "MZ175" a 175cc 4-stroke OHV engine. Proven in use as a multi-purpose engine and on various Yamaha products like golf cars, this power unit is known for its reliability and high power output. It is also characterized by its good fuel economy and quiet running.
The EF3000iSE also features clean exhaust that clears the world’s strictest emissions standards, the U.S's EPA Phase II Tier II.
